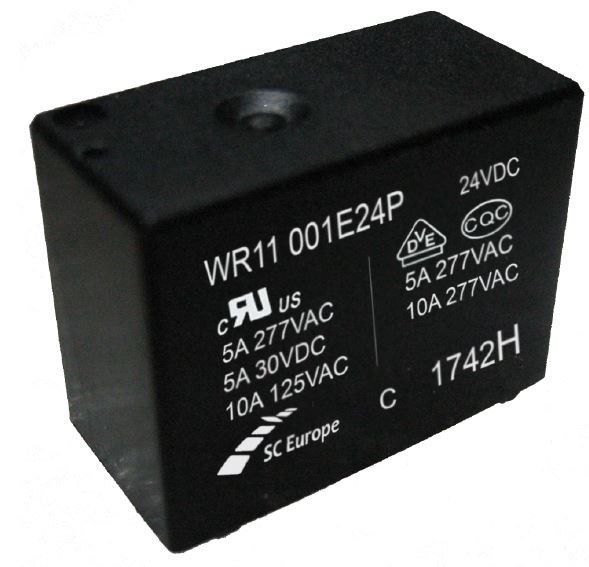

Products / Relais

SongChuan

Series No. 102

Facts:

Mini Size, High Rating
Perfect for Automobile electrical systems
Epoxy Seal Type and Flux Tight
Applications: Power windows, car alarms

Series No. 103

Facts:

Mini sizes, high rating
Perfect for automotive electrical systems
Epoxy sealed and flux tight types available
Single or twin relays available
Applications: power window, door lock, door mirror, power sun roof, power seat, defogger

Series No. 108

Facts:

Low profile Micro ISO automotive relay
Optional to be equipped with diode or resisitor
High ratingup to25A
High temperature withstand up to 105°C

Series No. 207

Facts:

High Power Sugar Cube Relay,
20A 125VAC, 16A 240VAC, TV8 rated
High insulation system Class F available
UL CUR & VDE approved
Different Contact Material Choices
High performance PCB power relay for motor control, compressor control, home appliances.

Series No. 301

Facts:

ISO 280 Footprint
Contact Rating up to 35A 14VDC
1 Form A and 1 Form C arrangement
Base holder type available
Quick connect type available

Series No. 302

Facts:

20A miniature relay with 1 N/O contact
PCB terminals with or without quick connect terminals
UL/CUL & TUV approved
UL Class F Insulation System Optional

Series No. 303

Facts:

Ultra micro ISO 280 automotive relay
High rating up to 20A
High temperature withstand up to 125°C ambient
Applications: door lock, head lamp, fuel pump, radiator fan, ABS

Series No. 307

Facts:

UL,TUV and VDE Approved
Class F Insulation System available
High Ratings 10A/277VAC, 10A/250VAC
Flux-tight and Sealed Types Available
High Sensitivity Type, Low Power Type

Series No. 507-1 pole

Facts:

High rating 12A 250VAC or 17A 250VAC (507H) and high performance
UL CUR VDE approved
3.5mm and 5,0mm Pinning
High insulation system Class F available
Different contact material choice
Different coil power choice : 0,25W / 0,4W / 0,53W DC coils; 0,75VA AC coils

Series No. 507-1pole

Facts:

High rating 12A 250VAC or 17A 250VAC (507H) and high performance
UL CUR VDE approved
3.5mm and 5,0mm Pinning
High insulation system Class F available
Different contact material choice
Different coil power choice : 0,25W / 0,4W / 0,53W DC coils; 0,75VA AC coils

Series No. 731

Facts:

General Purpose, plug-in, 10 amps
UL, CSA - CE
1, 2, or 3 Pole
Socket/Solder-lug or PCB terminals
Push-to-test, indicator light options
AC/DC Coils
Sockets available

Series No. 731H

Facts:

General Purpose, plug-in, Up to 25 amps
UL, CSA - CE
1, 2, or 3 Pole
Socket/Solder-lug or PCB terminals
Push-to-test, indicator light options
AC/DC Coils
Sockets available

Series No. 735

Facts:

General Purpose
UL, CSA
1, 2, or 3 Pole
Plug or PCB Terminals
Push-to-test, indicator light options
AC/DC Coils

Series No. 735

Facts:

General Purpose
UL, CSA
1, 2, or 3 Pole
Plug or PCB Terminals
Push-to-test, indicator light options
AC/DC Coils

Series No. 737

Facts:

General Purpose, 30 amps
UL and CSA
1X, 1Y or 1Z contact arrangements
Multiple enclosures with .250 Q.C./Solder-lug Terminals
Push-to-test, indicator light options
AC/DC Coils

Series No. 793

Facts:

Miniature, 16-20 amps
UL, CSA, & TUV
VDE 8mm spacing, 4 KV Dielectric
TV 10, SPNO
5mm Pinning
Flux-tight or Sealed

Series No. 801H

Facts:

Sub-Miniature, 10-15 amps
UL, CSA, & TUV
TV-8, SPNO
Flux-tight or Sealed

Series No. 804

Facts:

Miniature 30 AMP Automotive Relay
Plug-in/QC Terminals
Plain cover or flange cover versions available
Option with diode or resistor available
1 N/O contact

Series No. 805

Facts:

High rating 20A 240VAC
High insulation system Class F available
UL CUR approved
Optional for open-frame, dust cover, sealed type and with/without quick terminals on top
Ideal for home appliance application, especially for heating control use

Series No. 812

Facts:

Sub-miniature, 10-12 amps
UL, CUR & VDE
UL Class F Insulation System
TV-8, SPNO
Flux-tight or Sealed
Versatile, high performance, small package

Series No. 822

Facts:

Automotive, 40 amps
USA and European pin-out
Open Frame, Flux-tight or Sealed
1.2 watt and 1.6 watt coils
High power, low cost

Series No. 832

Facts:

Miniature, 20-30 amps
UL, CSA, & VDE
UL Class F Insulation System optional
UL 508/ UL 873 spacing, 1/4" through air and 3/8" over surface
Special 1.9 mm contact gap optional -SPNO
Open-frame, dust cover, flux-tight or sealed
Provided with 2 common terminals

Series No. 832A

Facts:

Miniature, 20-30 amps
UL Class F Insulation System optional
UL 508/UL 873 spacing, 1/4" through air and 3/8" over surface
Special 1.9 mm contact gap optional - SPNO
Open-frame, dust cover, flux-tight or sealed
Provided with 1 common terminals
UL,CSA and VDE approved

Series No. 832AWP

Facts:

PCB Type + Quick Connect Terminals
High Insulation Type and High Dielectric Strength Type Available
Contact Gap to 1.9 mm, High Dielectric Strength 4000Vrms
Upto 30A Switching in SPDT and 20A Switching in SPDT Arrangement
UL Class F Insulation Standard
Ideal for Home and Industrial Applications, HVAC, and many other applications
Provided with 2 common terminals
UL,CSA and VDE approved

Series No. 832HA

Facts:

Miniature, 40 amps
UL/CUL
UL Class F Insulation System
SPNO or SPDT contact
dust cover, flux-tight or sealed
Provided with 1 common terminal

Series No. 841

Facts:

25-30 amps - SPDM or DPDM
UL, CSA, and TUV
Conforming to VDE 0435
3mm contact gap optional, DPDM
.250 Q.C./Solder-lug or PCB terminals
AC/DC Coils
UPS, air conditioners and heater controller applications

Series No. 845HN-2

Facts:

Sub-Miniature - 2 Pole, 8 amps
Low Profile - 18.5mm
UL, CSA, & TUV
VDE 8mm spacing, 4 KV Dielectric
5mm Pinning
Flux-tight or Sealed
UL Class B Insulation System Optional

Series No. 871

Facts:

Miniature 35 AMP Automotive Relay
Plug-in/QC Terminals
Cover with shroud option
1 Form A and 1 Form C Contact Forms

Series No. 891

Facts:

Quick Terminal and PCB Terminal Available
Resistive load 25A 250VAC
Inductive load Inrush 60A 240VAC PF 0.7
Compressor load Steady state 16A 240VAC PF 0.9
Complete CSA/US and TUV, Spacing and Contact
Application: Compressor and heater control in air conditioners

Series No. 892

Facts:

CSA/CUR/TUV/VDE Approved
High Insulation System Approval
High Electrical Noise Immunity
High Switching Capacity in a Compact Package
High Senstivity: 200mW and 400mW
High Surge Voltage: 3,000V between Contacts and Coil

Series No. 895

Facts:

Mini Size, High Rating
Perfect for Automotive Electrical Systems
The Smallest Double Make Type Relay
Epoxy Seal Type and Flux Free Type
Applications: Power Windows, Auto-Door Locks, Sunroofs
Car Alarm Systems, Etc. s

Series No. 896H

Facts:

Contact Rating 50A
High Temperature Version
4 Different Contact Arrangements
Standardized Design for Plug-in Quick Connect Terminals and PCB
Optional Mounting Bracket

Series No. 897

Facts:

Contact Rating 70A
High Temperature Version
Standardized design for Plug-in Quick Connect Terminals
Optional Mounting Bracket

Series No. 898

Facts:

ISO 280 Footprint
Contact Rating 50A (898H only)
High Temperature Version
Contact Arrangements through SPDT and SPST
Optional Mounting Bracket with Plastic
Various Enclosure Options

Series No. 899

Facts:

Sub-Miniature, 10 amps
UL, CUR & VDE
UL Class F Insulation System
Flux-tight or Sealed
Versatile, high performance, small package
AgNi, AgSnO available

Series No. 905

Facts:

New generation of heavy duty PCB automotive relay
Design for multiple function applications with THT terminals and smallest mounting space
Contact rating 30A 14VDC T100
Epoxy sealed type and Flux-tight
Applications:Power windows, wiper, lamps, ideal for smart junction box
